802.11p 高可靠性 V2X 射頻前端模組

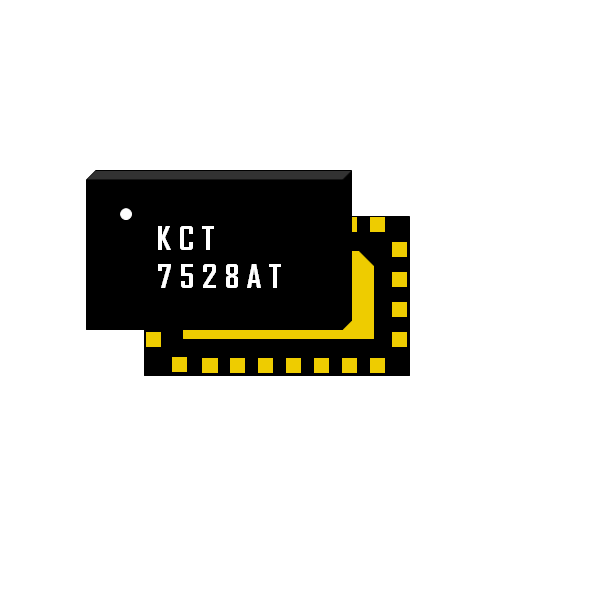

KCT7528AT

802.11p 高可靠性 V2X 射頻前端模組

產品介紹

KCT7528AT is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for IEEE 802.11p DSRC and C-V2X applications and systems in the 5.770-5.925GHz  range.


Supporting C V2X

WIFI protocol: 802.11p

Operating frequency band from 5.77-5.925GHz

Designed to operate over automotive

temperature from -40 to 105° C

High performance, High reliability

產品規格

Support IEEE 802.11p DSRC and C-V2X

Fully-matched input and output

Integrated power detector

Nominal Voltage at 5V

Transmit gain: 32dB

Receive gain: 16dB

Noise Figure: 1.7dB

Psat：30dBm

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN 24-pin, 3×5×0.75mm (MSL3, 260 oC per JEDEC J-STD-020)

ROHS and REACH Compliant
